the widget base class, all widgets should extend it More...

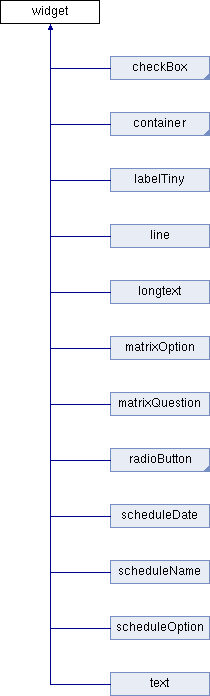

Inheritance diagram for widget:

Public Member Functions
	serialize_config ()
	makes a string (php serializer) of the widget config and stores it in widget::config
	unserialize_config ()
	takes widget::config in string form (php serializer) and makes an array
	init_config ()
	initialise config. unserialize when necessary
	set_config ($name, $val)
	sets a config variable
	get_config ($name)
	gets an config variable or it's default value
	set_data ($name, $val)
	sets a data variable. Data is meant for non persistend data storage such as count
	get_data ($name)
	gets a data variable or it's default value
	check_vital_vars ()
	checks if widget::typ widget::name widget::index and widget::pollID are set
	check_required ()
	checks if widget's name is in $_POST (question answered) if the widget is a required question
	check_max ()
	checks if a maximum limit of different answers to a question has been exceeded
	set_dispName ($dispName)
	sets widget's display name by escaping html characters ant checking for a maximum length of 256 chars
	set_name ($name)
	sets widget's name. Max 25 chars. Sets the widget's ID if input is empty
	display_edit_begin ()
	prints edit toolbar and widget container div for a widget. Used as link to widget's edit page
	display_name_edit ()
	prints edit widget name
	handle_name_edit ()
	handles widget name edit and sets widget::name
	display_dispName_edit ()
	prints display name edit
	handle_dispName_edit ()
	handles widget display name edit and sets widget:: dispName
	display_required_edit ()
	prints widget is_required checkbox edit
	handle_required_edit ()
	handles widget is_required checkbox edit and sets widget::is_required
	display_chartType_edit_generic ($allowed, $allowed_names)
	prints widget chart type select edit
	handle_chartType_edit_generic ($allowed)
	handles widget chart type select edit and sets config value
	save_config ($db)
	saves the widget config array to database
	save_dispName ($db)
	saves the widget's display name widget::dispName
	save_required ($db)
	saves the widget's is required widget::is_required
	save_name ($db, $new_name)
	sets the widget's name in the result table and the widget table

Data Fields
	$pollID
	ID of the poll the widget belongs to.
	$name
	The name of the widget, used for columname in the result table. Using the widget's ID in simple poll mode.
	$value
	Place to store data. For output_widget it's the shown data, for input_widget it's the result data.
	$config
	Config array, can be serialized as string.
	$is_required = false
	Is the widget a required question?
	$dispName
	User friendly name for the widget. Used to ask the question.
	$index
	Index in the widget_list.
	$ID
	widget's ID
	$is_child = false
	is the widget a child of another widget or a child of a poll?
	$parent = -1
	the parent's ID if the widget is a child
	$long_result = false
	$direct_result = true
	widget has a row in the result table

Private Attributes
	$data = array()

Detailed Description

the widget base class, all widgets should extend it

Definition at line 13 of file widgetBaseClass.class.php.

Member Function Documentation

check_max ( )

checks if a maximum limit of different answers to a question has been exceeded

Returns: bool true if ok, else error string

Reimplemented in checkBoxSingle.

Definition at line 363 of file widgetBaseClass.class.php.

check_required ( )

checks if widget's name is in $_POST (question answered) if the widget is a required question

Returns: bool true if widget not required or question han been answered, string with error message if test failed

Reimplemented in container, radioButtonList, and checkBoxList.

Definition at line 335 of file widgetBaseClass.class.php.

check_vital_vars ( )

checks if widget::typ widget::name widget::index and widget::pollID are set

Exceptions

varException "widget cars not set"

Returns: bool true

Definition at line 321 of file widgetBaseClass.class.php.

display_chartType_edit_generic	(	$allowed,
		$allowed_names
	)

prints widget chart type select edit

See Also: widget::handle_chartType_edit_generic()

Parameters

array	$allowed	list of allowed chartypes for this widget
array	$allowed_names	list of allowed chartypes for this widget pretty print names

Definition at line 561 of file widgetBaseClass.class.php.

display_dispName_edit ( )

prints display name edit

See Also: widget::handle_dispName_edit()

Reimplemented in textExt, and matrix.

Definition at line 505 of file widgetBaseClass.class.php.

display_edit_begin ( )

prints edit toolbar and widget container div for a widget. Used as link to widget's edit page

Definition at line 443 of file widgetBaseClass.class.php.

display_name_edit ( )

prints edit widget name

See Also: widget::handle_name_edit()

Definition at line 477 of file widgetBaseClass.class.php.

display_required_edit ( )

prints widget is_required checkbox edit

See Also: widget::handle_required_edit()

Definition at line 533 of file widgetBaseClass.class.php.

get_config ( $name )

gets an config variable or it's default value

Parameters

string $name variable name

Returns: mixed config

Reimplemented in buttonListContainer, text, schedule, checkBox, radioButtonList, checkBoxList, and radioButton.

Definition at line 181 of file widgetBaseClass.class.php.

get_data ( $name )

gets a data variable or it's default value

Parameters

string $name variable name

Returns: mixed data

Reimplemented in checkBox, radioButton, schedule, checkBoxSingle, and matrixQuestion.

Definition at line 306 of file widgetBaseClass.class.php.

handle_chartType_edit_generic ( $allowed )

handles widget chart type select edit and sets config value

See Also: widget::display_chartType_edit_generic()

Parameters

array $allowed list of allowed chartypes for this widget

Returns: bool true or error string

Definition at line 582 of file widgetBaseClass.class.php.

handle_dispName_edit ( )

handles widget display name edit and sets widget:: dispName

See Also: widget::display_dispName_edit()

Returns: bool true or error string

Reimplemented in textExt, and matrix.

Definition at line 516 of file widgetBaseClass.class.php.

handle_name_edit ( )

handles widget name edit and sets widget::name

See Also: widget::display_name_edit()

Returns: bool true or error string

Definition at line 488 of file widgetBaseClass.class.php.

handle_required_edit ( )

handles widget is_required checkbox edit and sets widget::is_required

See Also: widget::display_required_edit()

Returns: bool true or error string

Definition at line 546 of file widgetBaseClass.class.php.

init_config ( )

initialise config. unserialize when necessary

Returns: bool true

Exceptions

exception when serialized config is corrupted

Definition at line 59 of file widgetBaseClass.class.php.

save_config ( $db )

saves the widget config array to database

Parameters

db $db the database instance

Returns: bool true on success, else false

Definition at line 599 of file widgetBaseClass.class.php.

save_dispName ( $db )

saves the widget's display name widget::dispName

Parameters

db $db the database instance

Returns: bool true on success, else false

Definition at line 611 of file widgetBaseClass.class.php.

save_name	(	$db,
		$new_name
	)

sets the widget's name in the result table and the widget table

Parameters

db	$db	the database instance
string	$new_name	the name to be set

Definition at line 629 of file widgetBaseClass.class.php.

save_required ( $db )

saves the widget's is required widget::is_required

Parameters

db $db the database instance

Returns: bool true on success, else false

Definition at line 620 of file widgetBaseClass.class.php.

serialize_config ( )

makes a string (php serializer) of the widget config and stores it in widget::config

Definition at line 33 of file widgetBaseClass.class.php.

set_config	(	$name,
		$val
	)

sets a config variable

Parameters

string	$name	configvar name to be set
mixed	$val	value to be set

Returns: true if success else error string

Reimplemented in buttonListContainer, schedule, text, checkBox, radioButtonList, radioButton, and checkBoxList.

Definition at line 78 of file widgetBaseClass.class.php.

set_data	(	$name,
		$val
	)

sets a data variable. Data is meant for non persistend data storage such as count

Parameters

string	$name	data name to be set
mixed	$val	value to be set

Returns: true if success else error string

Reimplemented in checkBox, checkBoxSingle, radioButton, schedule, and matrixQuestion.

Definition at line 293 of file widgetBaseClass.class.php.

set_dispName ( $dispName )

sets widget's display name by escaping html characters ant checking for a maximum length of 256 chars

Parameters

string $dispName name to be set

Returns: bool true on success or error string on failure

Definition at line 389 of file widgetBaseClass.class.php.

set_name ( $name )

sets widget's name. Max 25 chars. Sets the widget's ID if input is empty

Parameters

string $name name to be set Only 0-9 a-z A-Z and _ are allowed.

Returns: bool true on success or error string on failure

Definition at line 411 of file widgetBaseClass.class.php.

unserialize_config ( )

takes widget::config in string form (php serializer) and makes an array

Definition at line 42 of file widgetBaseClass.class.php.

Field Documentation

$config

Config array, can be serialized as string.

Definition at line 18 of file widgetBaseClass.class.php.

$data = array()

private

Definition at line 25 of file widgetBaseClass.class.php.

$direct_result = true

widget has a row in the result table

Definition at line 28 of file widgetBaseClass.class.php.

$dispName

User friendly name for the widget. Used to ask the question.

Definition at line 20 of file widgetBaseClass.class.php.

$ID

widget's ID

Definition at line 22 of file widgetBaseClass.class.php.

$index

Index in the widget_list.

Definition at line 21 of file widgetBaseClass.class.php.

$is_child = false

is the widget a child of another widget or a child of a poll?

Definition at line 23 of file widgetBaseClass.class.php.

$is_required = false

Is the widget a required question?

Definition at line 19 of file widgetBaseClass.class.php.

$long_result = false

Definition at line 27 of file widgetBaseClass.class.php.

$name

The name of the widget, used for columname in the result table. Using the widget's ID in simple poll mode.

Definition at line 16 of file widgetBaseClass.class.php.

$parent = -1

the parent's ID if the widget is a child

Definition at line 24 of file widgetBaseClass.class.php.

$pollID

ID of the poll the widget belongs to.

Definition at line 15 of file widgetBaseClass.class.php.

$value

Place to store data. For output_widget it's the shown data, for input_widget it's the result data.

Definition at line 17 of file widgetBaseClass.class.php.

The documentation for this class was generated from the following file:

demo/inc/widgetBaseClass.class.php
